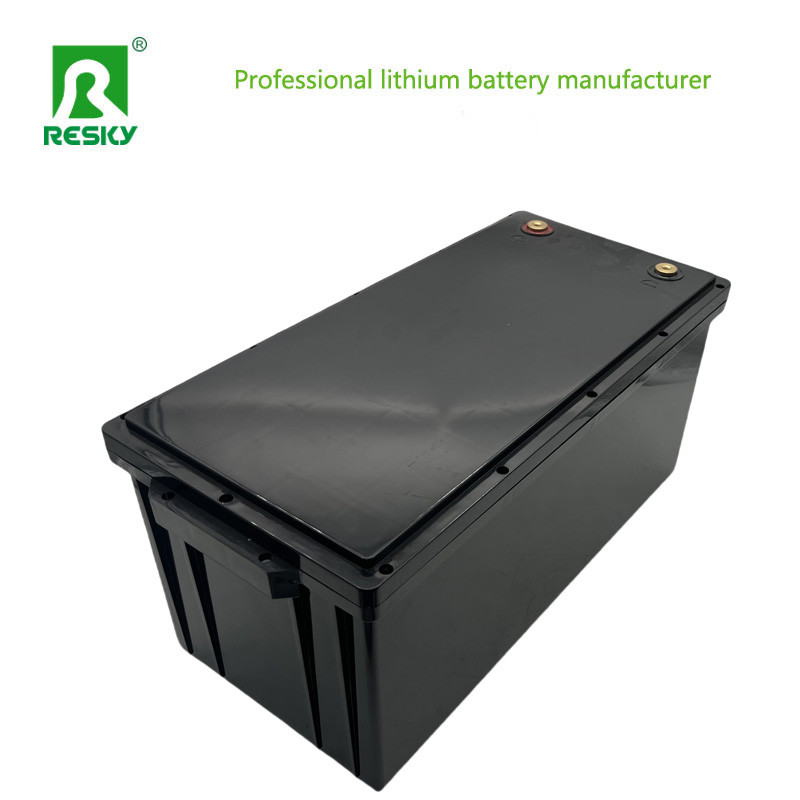

Power 25.6V 100Ah Lithium Iron Phosphate Battery Battery Pack For Electric Pallet Trucks

Shenzhen Resky Electronics Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

Power 25.6V 100Ah Lithium Iron Phosphate Battery Battery Pack For Electric Pallet Trucks

  • 1
  • 2

Brand Name : RESKY

Model Number : RSK-LFP25.6-100

Certification : CE,RoHS,MSDS,Un38.3

Place of Origin : China

MOQ : 1pcs

Price : Negotiable

Payment Terms : Western Union,T/T

Supply Ability : 500pcs/day

Delivery Time : 15-20days

Packaging Details : Wooden case

Electrolyte : Lifepo4

Structure : 8s1p

Cell Type : 100Ah Lifepo4 Battery Cells

Motor : 2500W

Charging Cut-off Voltage : 29.2V

Charging Current : 10A

Dishcarging Cut-off Voltage : 20V

Continuous Discharging Current : 100A

Wh : 2560wh

Dimension : 225*242*523mm

Contact Now

Product Description

Power 25.6V 100Ah Lithium Iron Phosphate Battery Battery Pack For Electric Pallet Trucks

Specification:
Product name 25.6V 100Ah
Model RSK-25.6-100
Rated Capacity 100Ah
Nominal Voltage 25.6V
Over discharge protection voltage 20V±0.05V
Over charge protection voltage 29.2V±0.05V
AC Impedance New Cell Max.(mΩ) ≤100 mΩ
Maximum Continuous Charge Current ≤10A adjustment
Maximum Continuous Discharge Current ≤50A adjustment
Maximum Pulse discharge current ≤100A adjustment
Operation Temperature Range Charge: 0~45°C,Discharge: -20~60°C
Storage Temperature Range Less than 1 year: -20~25°C
Less than 3 months: -20~40°C
Storage Temperature Range Less than 30 Days: -25°C~45°C
Less than 90 Days: -25°C~30°C
Weight Approx 30kg
Cycle Characteristic 3000 times

Advantages for 25.6V 100Ah lithium iron phosphate battery pack used in electric pallet truck: ‌

High energy density and long life ‌:

Lithium iron phosphate battery has high energy density and can provide enough energy after a single charge to support electric pallet truck for long-term handling operations, reducing the need for frequent charging and improving work efficiency;

In additional, lithium iron phosphate battery has a long cycle life. After thousands of charge and discharge cycles, the battery capacity decay remains at a low level, which means that the battery life is longer and the long-term operating cost of users is reduced.

‌Fast charging and high efficient charging and discharging ‌:

Lithium iron phosphate battery supports high current charging and can complete charging in a shorter time, usually only 4 to 5 hours to fully charge, while traditional lead-acid batteries take 8 to 10 hours;

This enables electric pallet trucks to resume working status faster and improve overall operating efficiency;

‌High safety and stability‌: Lithium iron phosphate batteries have high thermal stability and low risk of spontaneous combustion. They can maintain stable performance even under extreme conditions, ensuring the safety of electric pallet trucks during operation‌;

In additional, the lithium iron phosphate battery has a stable structure during the charging and discharging process, does not burn or explode, and further improves its safety‌.

‌Low maintenance cost‌:

Lithium iron phosphate batteries have no memory effect and can be charged and discharged at any time without special maintenance‌;

This reduces the maintenance cost of electric pallet trucks and reduces downtime caused by battery problems.
‌Wide range of application‌: Lithium iron phosphate batteries are suitable for various working environments, including food, fast-moving consumer goods, cold chain logistics and other fields, and can meet the needs of different warehousing systems‌;

In additional, the casing of the lithium iron phosphate battery is connected by gas shielded welding and high-strength bolts to ensure its reliability and durability‌.


Why choose us?

1. We accept small quantity order or big quantity order;

2. We could accept any customized lithium battery pack orders;

3. We could accept orders with different requirements;

4. We guarantee 100% QC pass before delivery;

5. Fast production time, we have enough stock cells;

6. Fast solution confirmation, and quotation confirmation;

Factory pictures:
Power 25.6V 100Ah Lithium Iron Phosphate Battery Battery Pack For Electric Pallet Trucks
Power 25.6V 100Ah Lithium Iron Phosphate Battery Battery Pack For Electric Pallet Trucks
Power 25.6V 100Ah Lithium Iron Phosphate Battery Battery Pack For Electric Pallet Trucks
Power 25.6V 100Ah Lithium Iron Phosphate Battery Battery Pack For Electric Pallet Trucks
Power 25.6V 100Ah Lithium Iron Phosphate Battery Battery Pack For Electric Pallet Trucks

Pictures:
Power 25.6V 100Ah Lithium Iron Phosphate Battery Battery Pack For Electric Pallet TrucksPower 25.6V 100Ah Lithium Iron Phosphate Battery Battery Pack For Electric Pallet TrucksPower 25.6V 100Ah Lithium Iron Phosphate Battery Battery Pack For Electric Pallet TrucksPower 25.6V 100Ah Lithium Iron Phosphate Battery Battery Pack For Electric Pallet TrucksPower 25.6V 100Ah Lithium Iron Phosphate Battery Battery Pack For Electric Pallet Trucks
